Injection Molding Machine for PET Preforms IJT-SV270PET1200
Injection weight: 1230grams
clamping force: 270T
Space between tie-bars: 580x580mm
Machine Model: 118t – 650t PET accept Customized Clamping tonnage
Type: Normal Servo System
Plastic Parts: PET perform, PET bottle, PET bottle
| PET Prefrom Molding Machine | |||
| Bottle Diameter(mm) | Cavity | Recommend Machine(Ton) | Volume(ml) |
| D28 | 16 | 190 | 500 |
| D28 | 24 | 220 | 500 |
| D28 | 32 | 330 | 500 |
| D28 | 48 | 380 | 500 |
| D28 | 72 | 500 | 500 |
| D55 | 2 or 4 | 380 | 5Gallon |
FEATURES
1.Longer Screw Lift-time-Our standard screw supplier stands as a pacesetter in the industry, with all manufacturing standards surpassing the norms set by the sector.
2.Enhanced Injection Volume: The larger diameter of the screw allows for a greater volume of material to be processed, which directly translates to an increased injection volume. This is crucial or applications that require the handling of larger amounts of plastic or other materials in a single cycle .
3.Reduced Charging Time: The efficiency of the screw design plays a critical role in reducing the time it takes to prepare for the next injection. A well-designed screw can quickly move through the material, reducing the time needed to charge the machine for the next cycle. This is particularly important in high-speed production environments where minimizing downtime is essential .
4.Optimized Screw Design: The design of the screw, including its diameter and pitch, can be optimized to ensure that the material is melted and transported efficiently. This optimization can lead to faster charging times by reducing the resistance and friction within the machine, allowing the screw to move more freely and quickly .
5.Heat Generation and Conduction: The larger-diameter screw can generate more heat due to viscous heat from shearing and heat conduction from the adjacent polymer and barrel. This increased heat generation can help reduce the time required to melt the material, thus reducing the charging time .
6.Pumping Efficiency: The pumping action of the screw, which is driven by drag flow and opposed by pressure flow, can be enhanced with a larger diameter screw. Optimum conditions for pumping

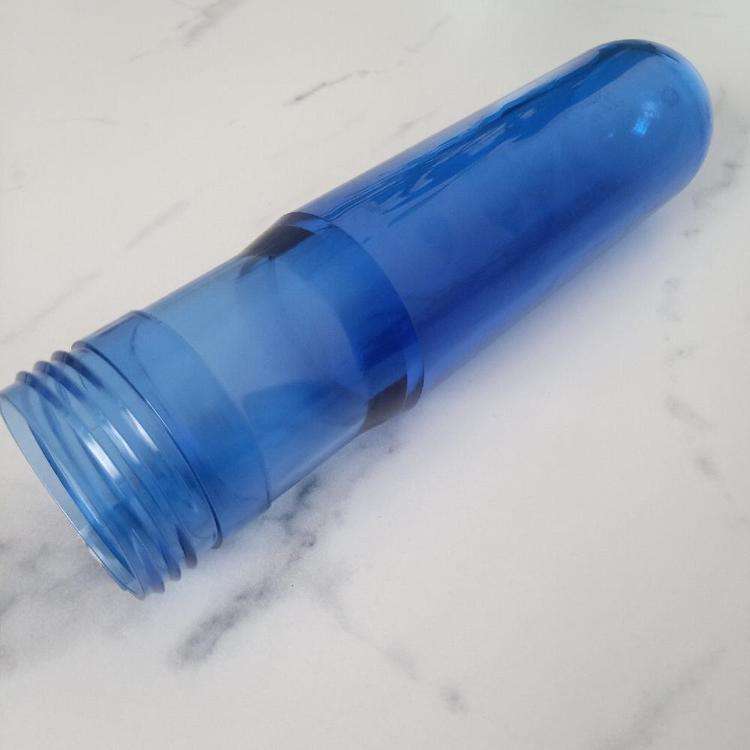

PET preforms are the intermediate product in the manufacturing of PET (Polyethylene Terephthalate) bottles and containers. Their main purpose is to be blown into their final shape using a stretch blow molding machine.
The primary end-uses for bottles made from PET preforms are:
Beverage Bottling:
Carbonated Soft Drinks (CSD): This is one of the largest applications. The PET material provides excellent barrier properties against carbon dioxide (CO2), keeping drinks fizzy.
Water: Both still and purified water are commonly packaged in PET bottles due to their clarity, lightness, and safety.
Juices & Teas: PET is widely used for non-carbonated beverages. For juices with high oxygen sensitivity, multilayer or coated preforms may be used.
Sports & Energy Drinks: The durability and shatter-resistance of PET make it ideal for active lifestyles.
Food Packaging:
Edible Oils: PET offers good resistance to oils and fats.
Sauces & Condiments: Such as ketchup, salad dressings, and soy sauce.
Jams, Jellies, and Spreads.
Personal Care & Household Products:
Shampoos, Conditioners, & Shower Gels: PET bottles are lightweight and safe for bathroom use.
Liquid Soaps & Hand Washes.
Household Cleaners: Including detergents, disinfectants, and cleaning sprays.
Pharmaceutical & Medical:
Liquid Medicines: Such as syrups and suspensions.
Mouthwash.
Saline Solution Bottles.
1.Our professional engineers, with more than 15 years of experience in production mode, rich experience allows them to quickly and accurately solve any problem of the machine.
2.Installation and start-up service; proper installation, efficient machine start-up and on-site operator training assure your Greenst machine will be as productive as possible, as soon as possible.
3.Online Field service; our staff of technical service representatives is on call nationwide(China mainland), ready to perform machine repairs or service at your location.
as aboard customer, we supply online service to help you slove any problem.
4.Telephone technical support; our team of technical experts is available to provide fast, over-the-phone answers and solutions to your urgent questions and problems.
5.Upgrade and retrofit services; our factory-trained engineers and support staff can offer upgrade and retrofit solution to ensure your older machines are operating at peak efficiency and productivity.
6.Training; our team of experienced instructors offer a wide range of training related to; safety, maintenance, operation, programming, process, and others, in both a classroom and on-site setting. Our customer can send your engineer to our workshop, stay at Greenst, to learning the machine control, maintain, etc. the cost is free.
1.Our team members average more than 10 years of service with our company and know the right questions to ask to identify your needs from Greenst.
2.We can also help you set up your own spare parts inventory management system to assure immediate availability of those parts needed for regular and scheduled maintenance.
3.At the time of delivery, we will randomly issue some wearing parts to prevent your machine from having problems and not having time to purchase.
IJT-SV PET Series Standard Servo Injection Molding Machine Specifications:
Loading Info:
Packing: Plastic film and Fixed in Container.
ROST MOLD: The 270T PET Preform Injection Molding Machine
Efficiency and Versatility for Dynamic Production Needs
Discover the perfect balance of power, precision, and agility with our 270-ton PET preform injection molding machine. Designed for manufacturers seeking exceptional flexibility across a diverse product range, this machine delivers outstanding performance and rapid cycle times, maximizing your return on investment.
Engineered for Versatile Performance:
High-Efficiency Cavity Configurations: Optimally designed to operate with 48-cavity to 64-cavity molds, providing the ideal output for medium to high-volume production runs.
Broad Preform Weight Range: Expertly manufactures preforms from 18g to 38g, covering an extensive portfolio of containers from small water bottles to premium beverage and sauce bottles.
Superior Stability & Consistency: Ensures every preform is produced with repeatable precision, guaranteeing excellent clarity and material properties for consistent blow-molding performance.
Synergy with Precision ROST MOLD Technology
The heart of this machine’s capability lies in its seamless integration with advanced injection mold technology. It is the perfect partner for ROST MOLD‘s high-performance molds, creating a synergy that unlocks peak efficiency, stunning detail, and remarkable durability. This partnership ensures that your injection molding process is not only productive but also consistently reliable.
We have always been focused on customer needs, under the premise of ensuring quality, we offer very competitive prices
