Explore PVC and UPVC injection molding machine configurations for pipe fittings and related rigid-PVC products. Final selection is based on the product, compound grade, mold and required output.
A PVC pipe fitting machine is not selected by clamping tonnage alone. Shot requirement, plasticizing demand, mold space, cavities, cooling and the target cycle must be reviewed as one production task.
If the project is new, send the pipe fitting sample or drawing and the output target first. Missing technical fields can then be identified before a configuration is recommended.
01
Drawing or sample, unit weight and pipe diameter / fitting type.
02
Compound grade, supplier data and available material information.
03
Cavities, outside dimensions and runner details.
04
Target cycle and hourly or daily quantity.
05
Power, cooling-water and plant conditions.
06
Existing mold, new mold or complete project.
Open an individual product record to review the currently published information. The two records now shown both refer to the IJT-SV118PVC platform and require duplicate and specification verification. Titles, images and parameters must be checked against the latest official technical file before final selection.
The machine platform determines the clamping and mold-space range. The injection-unit configuration must then match the required shot volume and plasticizing demand. Both are checked from the actual pipe fitting and mold.
01
Clamping force, tie-bar spacing, platen size, opening stroke and mold thickness.
02
Shot requirement, screw configuration, injection pressure and plasticizing demand.
03
Cavity number, mold dimensions, pipe diameter / fitting type, runner and cooling layout.
04
Cycle, hourly output, operating schedule and available utilities.
A PVC pipe fitting injection machine works as part of a production system. Supporting equipment is matched after the compound grade, material consumption, mold, cycle and factory conditions are confirmed.
01
Loading and preparation are reviewed from the actual PVC or UPVC compound and supplier guidance.
02
Barrel-zone settings and operating procedure are confirmed for the selected heat-sensitive compound.
03
Chiller and cooling-water conditions are reviewed from mold demand and target cycle.
04
Runner, cavities, cooling layout and target cycle are checked as one production requirement.

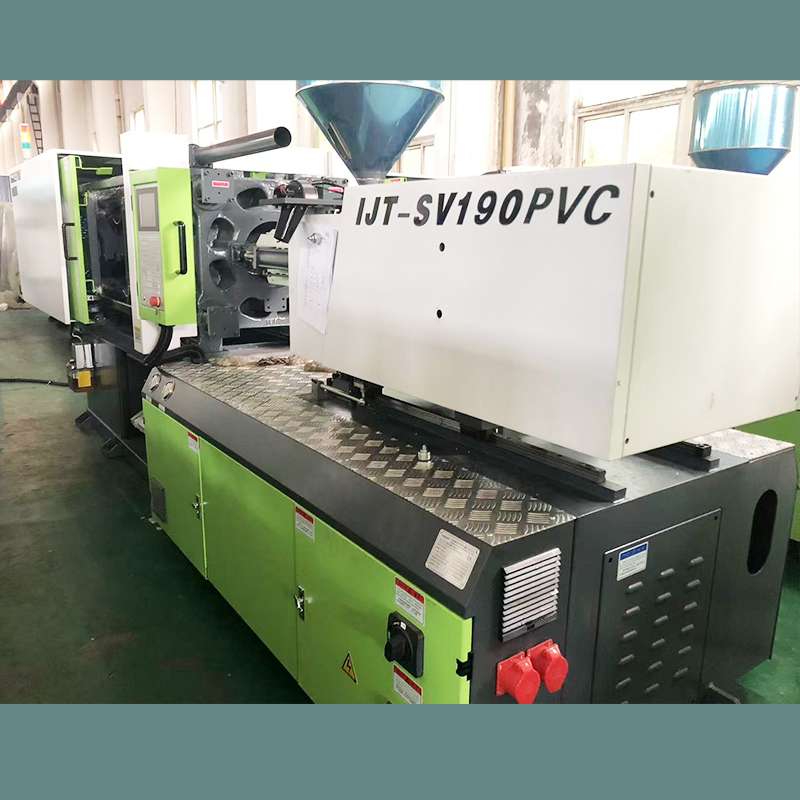

This factory image records an IJT-SV190PVC machine. It supports the existence of a dedicated PVC machine configuration, but it is not a universal model recommendation for every pipe fitting.
For a new project, the final machine, injection unit, mold, compound handling, temperature control and cooling arrangement must be recalculated from the customer’s product and output requirement.
Share the pipe fitting drawing or sample, product weight and dimensions, PVC or UPVC compound grade, mold cavities and dimensions, target cycle or output, and available plant utilities. These details are needed before the machine and injection-unit configuration can be checked.
The same clamping platform may be paired with different injection-unit configurations for different shot-volume and plasticizing requirements. A configuration suffix should therefore be checked against the pipe fitting, mold and official technical data instead of being treated as a separate tonnage model.
The compound grade, supplier recommendations, material condition and expected consumption must be confirmed before material handling is specified. Barrel temperature control, mold cooling and the operating procedure are then reviewed with the actual compound and product.
Yes. Mold cavities and dimensions, compound handling, loading, temperature control, cooling and other supporting equipment can be reviewed together with the machine. Final configuration is confirmed from the actual product and production target.
Send the pipe fitting drawing or sample, product weight and dimensions, PVC or UPVC compound grade, mold cavities and dimensions, and target output. If the project is new, send what is already available and we will identify the missing selection information.
